Galv Masonry Reinforcement

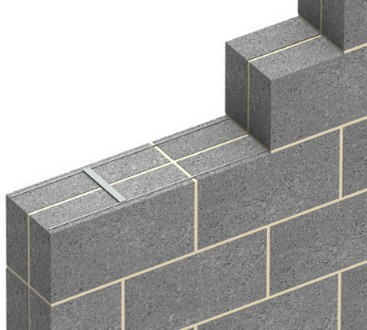

Ancon AMR-CJ masonry reinforcement allows the construction of collar-jointed walls i.e. two leaves of thin masonry used in place of a single leaf of wider, heavier blockwork. Ancon AMR-CJ is used to tie the two leaves together, so it acts as a single unit.

The product consists of 20 x 2.5mm flat ties welded to flattened longitudinal wires. The longitudinal wires have a minimum characteristic yield strength of 500N/mm².

Product Width
AMR-CJ is supplied in a standard width of 175mm to suit wall widths of 215mm comprising two leaves of either standard bricks or 100mm blocks.

Longitudinal Wire Diameters
3.0, 3.5, 4.0, 4.5, 5.0mm (equivalent diameter after flattening)
Selection is based on calculation.

Material
Galvanised steel (ref. G)
Galvanised steel is not suitable for use in an external leaf, in these cases use the stainless steel altenative.

Length
Ancon AMR-CJ is manufactured in a standard length of 2700mm
