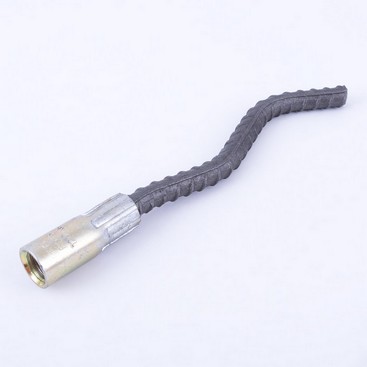

Wavy Tail Lifting Anchor Long
RFA-Tech Wavy Tail Anchors are quick to install and versatile for lifting most types of precast units. The anchor can be used to lift at concrete compressive strengths of 15N/mm2 and above without any further reinforcement, providing the unit has sufficient mesh or re-bar cage with at least the minimum specification as outlined in our Technical Manual.
The socket of the Wavy Tail is available in high grade zinc plated carbon steel and is swaged to a waved reinforcement bar. They are available with Rd12 to Rd52 threads that have load ratings from 500kg to 12,500kg. Stainless steel sockets and re-bar tails are available to special order.
Please refer to RFA-Tech's Precast Product Guide and Technical Manual for further technical information.
