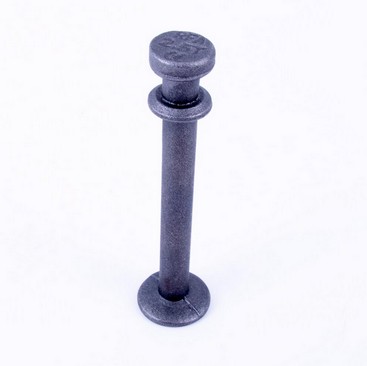

Capstan Double Head Anchor Black

The Capstan Double Head Anchor has been specifically developed for use in pipe production where anchor installation is automated, or where the upright moulds have the openings for the anchors to be installed.

The second head of the anchor assists accurate positioning, and ensures perpendicular installation as it sits tightly in the hollow of the former and creates a perfectly formed recess.

This feature also benefits the production of high volume flooring where large amounts of anchors are installed on a regular basis. The rubber former is hard wearing and has a thread which allows quick removal and cleaning, with no requirement to remove excess concrete in the void often experienced when using standard formers in floated applications. This anchor is lifted with the same shackle as standard Capstan Anchors and the load capacities are identical to the equivalent sized standard headed anchors.

This anchor is available in 1.3t - 5.0t loads groups and each anchor is stamped with the manufacturers identification mark, safe working load rating of the anchor, the batch number and CE mark.
